Instructions on installing your 3D printer driver under Windows 7.



Your 3D printer is supplied with a Ramps 1.4 controller, which uses an Arduino MEGA 2560 control board.  The following instructions will help you set-up your 3D printer by first installing the Arduino driver which creates a COM port in Windows device manager.  Pronterface will use this COM port to communicate with your 3D printer.  These instructions pertain to the installation of your driver under Windows 7 or Windows Vista.  If you have windows XP, please see this page.

RAMPS 1.4 driver installation

STEP 1

After connecting the USB Cable to the Computer either a “Found New Hardware Wizard” Dialogue window will appear, or a dialogue box as below, either way just close the respective window.

arduino driver install step 001 WIN7

STEP 2

Navigate to the Windows Control Panel and Select “System” and then select “Device Manager” on the top left hand side. You should then be able to see an “unknown device” under “other devices”

arduino driver install step 002 WIN7

STEP 3

Right click over the “unknown device” and select “properties”.

STEP 4

Select “Update Driver”.

arduino driver install step 004 win7

STEP 5

Select “Browse my computer for driver software”.

arduino driver install step 005 win7

STEP 6

Click “Browse”.

arduino driver install step 006 win7

STEP 7

Click “Ports (COM & LPT)”.

arduino driver install step 007 win7

STEP 8

Click “Have Disk”.

arduino driver install step 008 win7

STEP 9

Click “Browse”.

arduino driver install step 009 win7

STEP 10

Navigate to Where you located the “Arduino 1.0” folder, then go into the “drivers” folder and then select “Arduino MEGA 2560 REV3.inf” and click “Open”

arduino driver install step 010 win7

STEP 11

Select “Ok”.

arduino driver install step 011 win7

STEP 12

Select “Arduino Mega 2560 R3” then select “Next”.

 arduino driver install step 012 win7

STEP 13

Select “Install this driver software anyway”.

arduino driver install step 013 win7

STEP 14

After a short while (it could be up to a few minutes depending on your computer speed) the following message should appear, then select “Close”.

arduino driver install step 014 win7

RAMPS 1.4  COM PORT settings

STEP 1

Navigate to the Windows Control Panel and select “System” and then select device manager from the top left hand side.

arduino COM port setting step 001 win7

STEP 2

Navigate to “Ports (COM & LPT) and expand by selecting the triangle/arrow to the left of it, then right click over “Arduino Mega 2560 R3 (COM?)” and select “Properties”

arduino COM port setting step 002 win7

STEP 3

Make a note of the COM port your computer has allocated to the Arduino Serial Port, in the title “COM”, you will need this later when setting up your printer software. Now select “Port Settings”

arduino COM port setting step 003 win7

STEP 4

Select the “Bits per second” drop down menu and select “115200”, then select “Ok”

arduino COM port setting step 004 win7

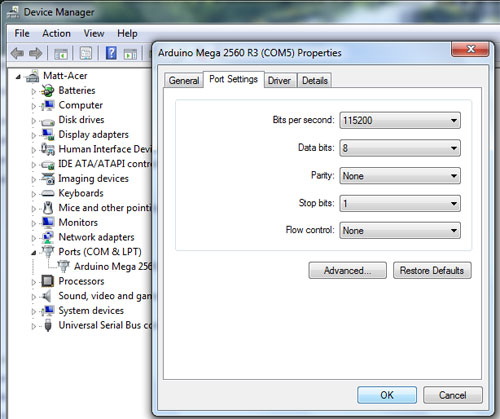

STEP 5

Select “Ok”, now we have set the port speed we.

arduino COM port setting step 005 win7

We can now proceed to install Pronterface and Slic3r.  Pronterface is used to control your 3D printer and slic3r prepares your 3D files by converting them into G-code which are fed to your 3D printer by pronterface.
